Features:
IP65 degree of protection

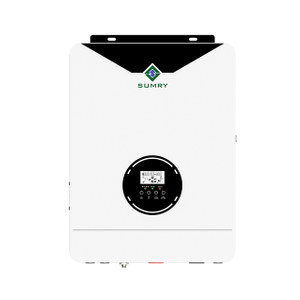

Pure sine wave solar inverter(Hybrid Inverter)
WIFI&GPRS available forlOS and Android
One-key restoration to factory Settings
Built-in Lithium battery automatic activation
Built-in 80A MPPT Solar charge:max 6000W
High PV input voltage range(60-550VDC)
Smart battery charge design to optimize battery life
Dual PV input
DPMS
Extraposition CT
Parallel operation up to 9 units
| MODEL | SUN-6.0KW-L1P-EU |
| PV INPUT(DC) | |
| Maximum PV Input Power | 6000W |
| Maximum PV Array Open Circuit Voltage | 550VDC |
| MPPT Voltage Range | 60～500VDC |
| MPPT Full Load Voltage Range | 230～500VDC |
| Maximum Input Current | 1/13.5A |
| Maximum Short circuit Current | 16.5 |
| MPPT Traker/Strings | 2 |
| ON-GRID TERMINAL | |
| Nominal Output Apparent Power | 5000VA |
| Maximum Output Apparent Power | 5000VA |
| Nominal Output Voltage | 230VAC |
| Nominal Operating frequency | 50HZ |
| Nominal Output Current | 22A |
| Power Factor(Cos phi),Ad justable | 0.8 leading～0.8 lagging |
| BATTERY TERMINAL | |
| Battery Voltage | 48VDC |
| Battery Voltage Range | 40～60VDC |
| Maximum Charging Current | 80A |
| Maximum Discharge Current | 105A |
| BACK-UP TERMINAL | |
| Nominal Output Apparent Power | 4600W/4600VA |
| Nominal Output Current | 20A |
| Nominal Output Voltage | 220/230/240Vac |
| Nominal Operating frequency | 50/60HZ |
| INTERACE | |
| Parallel Function | 9 units |
| PHYSICAL | |
| Dimension, DxWx H(mm) | 520*350*200 |
| Carton Dimension,D X W XH(mm) | 635*500*300 |
| Net Weight(kgs) | 20 |
| Gross Weight (kgs) | 23 |
| OPERATING ENVIRONMENT | |
| Altitude | ≤2000m |
| Operating Temperature | -25°C~60 C,derating 45℃ |
| STANDARD | |
| Compliance Safety | CE |
