FEATURES
Work at 2 different voltages : 12VDC or 24VDC. lt can meet different loads needs of users.
Cold start function.
Dual use on one inverter--World's first creation in 2025.
Pure sine wave output inverter.
According to the requirements of load,the input voltage range of utility grid can be selected.
According to the battery requirements, the charging current can be set through LCD.
Solar energy and utility grid can power loads at the same time.
AC input is compatible with mains and generator.
Automatic restart function when mains power is restored.
Overload/Over temperature/ short circuit protection.
The intelligent charging design of battery makes the battery more fully utilized.
RGB lights (optional).

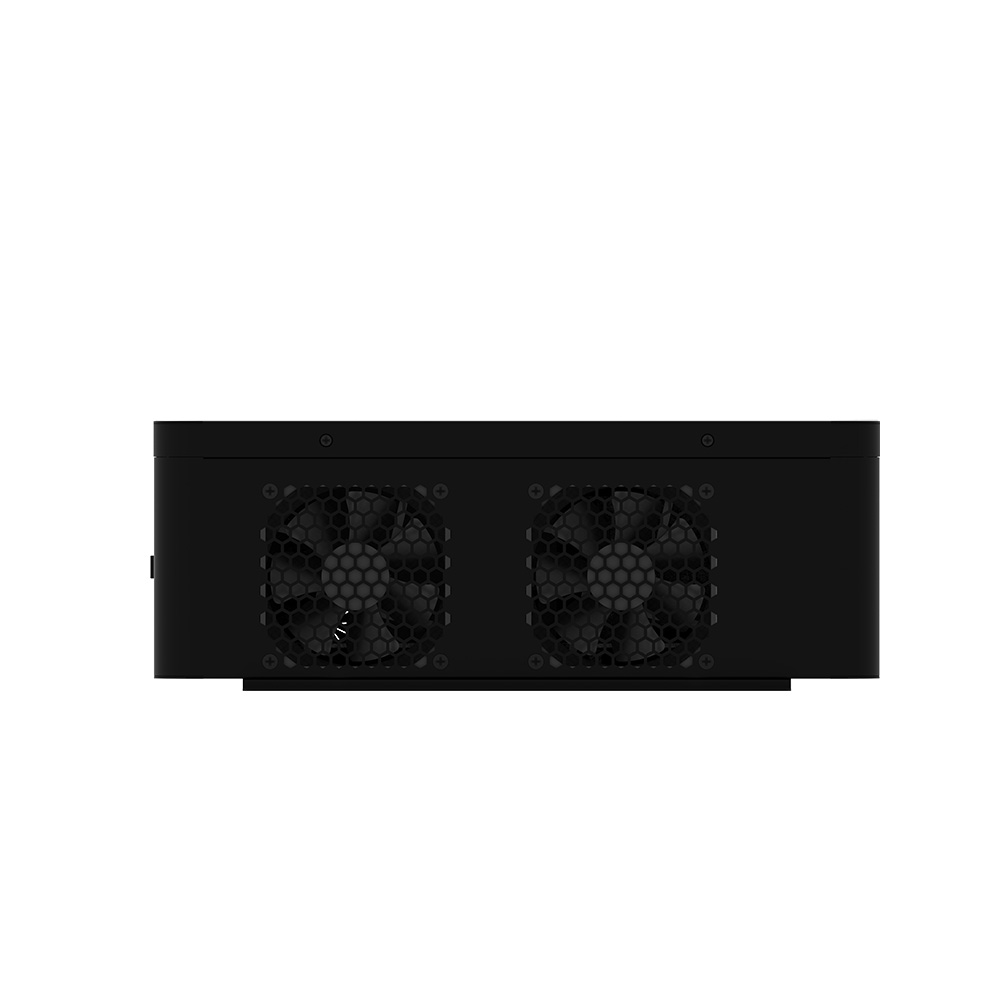

MODEL | SEP-4200H | |
Battery Voltage | 12V | 24V |
Rated output power | 2300VA/2300W | 4200VA/4200W |
Input | 230VAC | |
Voltage | 170~280VAC(For Personal Computers) | |
Selectable Voltage Range | 90~280VAC(For Home Appliances) | |
Frequency Range | 50Hz/60Hz(Auto Sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
Surge Power | 4600W | 8400W |
Effciency(peak)Battery to INV | 94% | |
Transfer Time | 10ms(For Personal Computers);20ms(For Home Appliances) | |
BATTERY&AC CHARGE | ||
Battery Voltage | 12V | 24V |
Floating Charge Voltage | 13.5V | 27VDC |
Overcharge Protection | 16 Vdc | 32Vdc |
Maximum Charge Current | 100A | |
SOLAR CHARGE | ||
Maximum PV Array Power | 4000W | |
MPPT Range @Operating Voltage | 55~500VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charge Current | 100A | |
PHYSICAL | ||
Dimension D*W*H(mm) | 480*400*200 | |
Net Weight(kgs) | 8.0 | |
Communication interface | RS485/RS232/BMS/WIFI Bluetooth | |
OPERATING ENVIRONMENT | ||
Humidity | 5%to 95%Relative Humidity(Nor~condensing) | |
Operating Temperature | -20℃~55℃ | |
Storage Temperature | -20℃~60℃ | |
