FEATURES

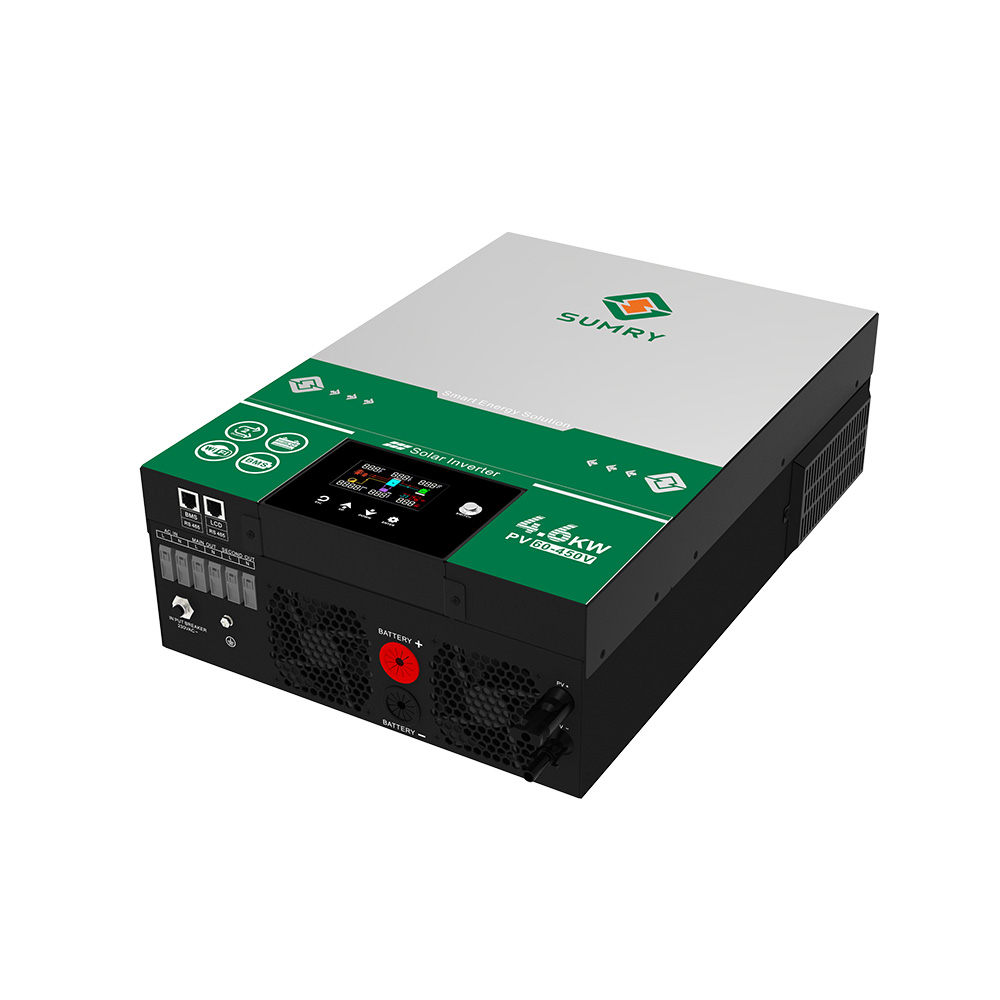

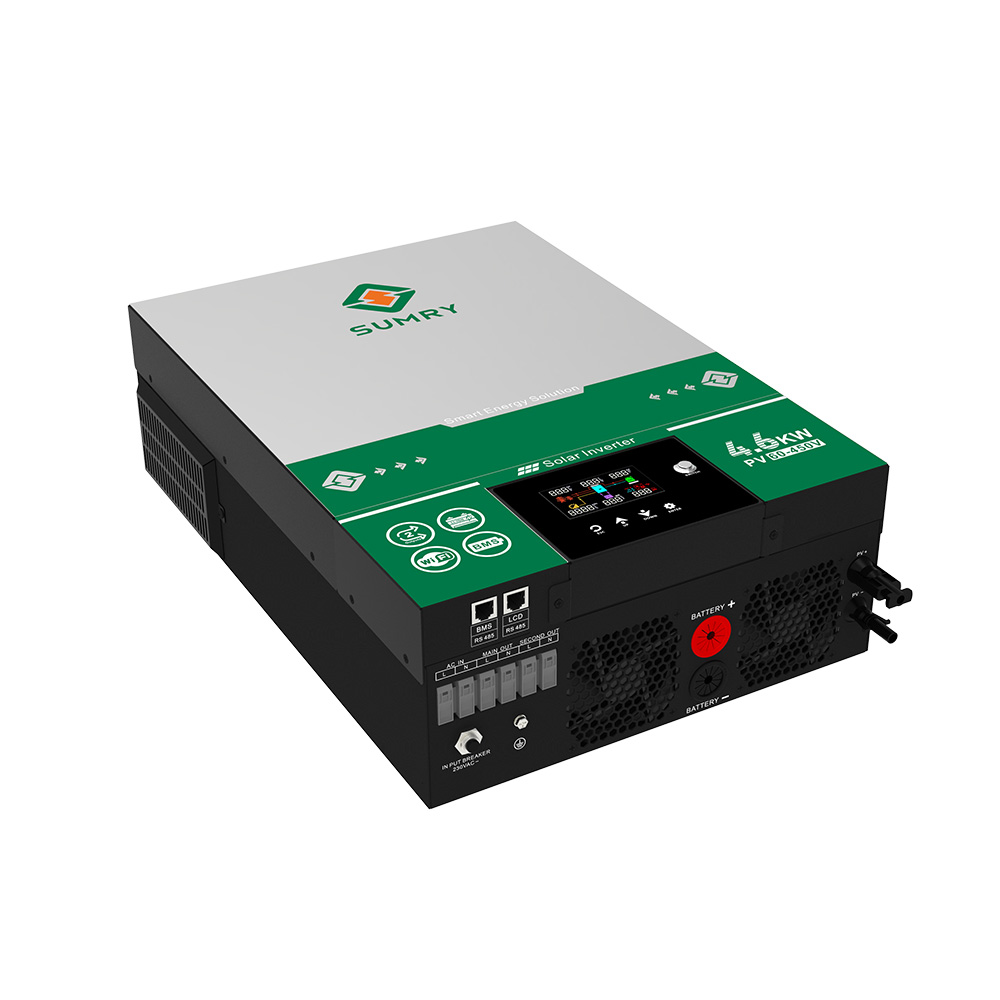

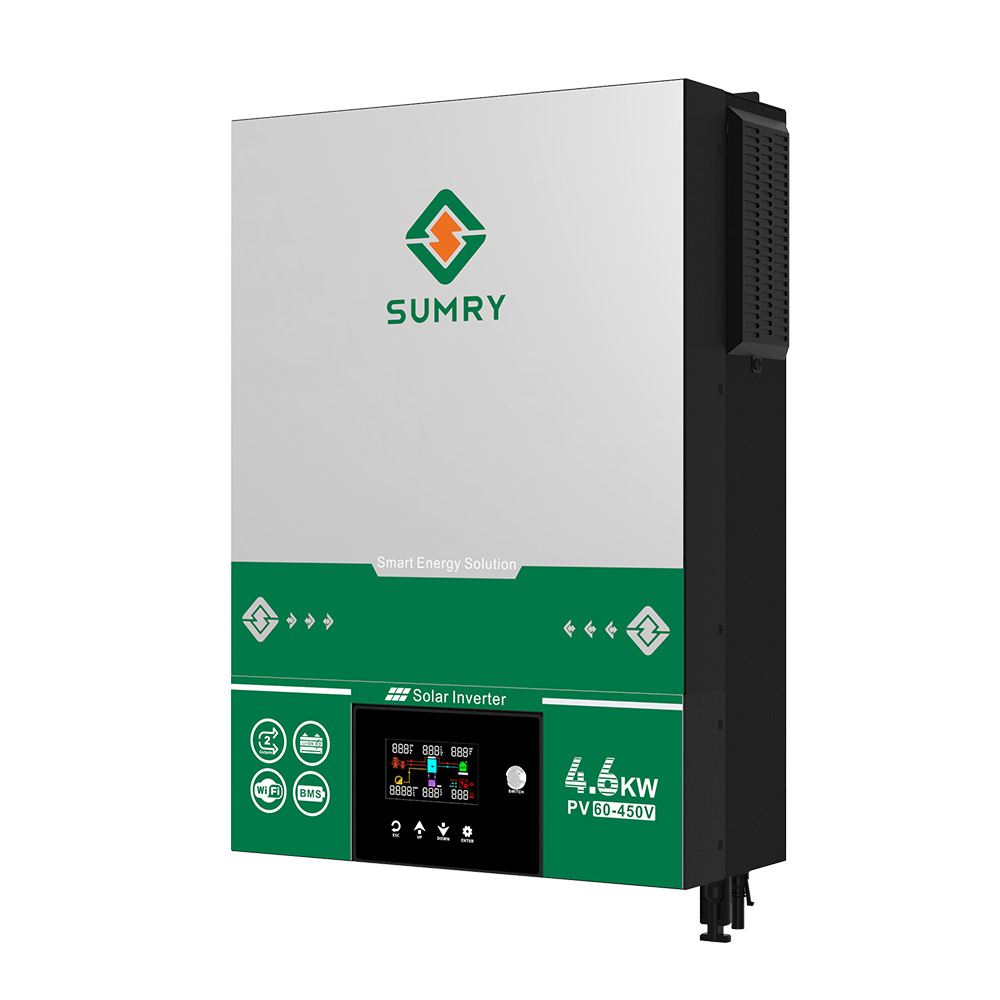

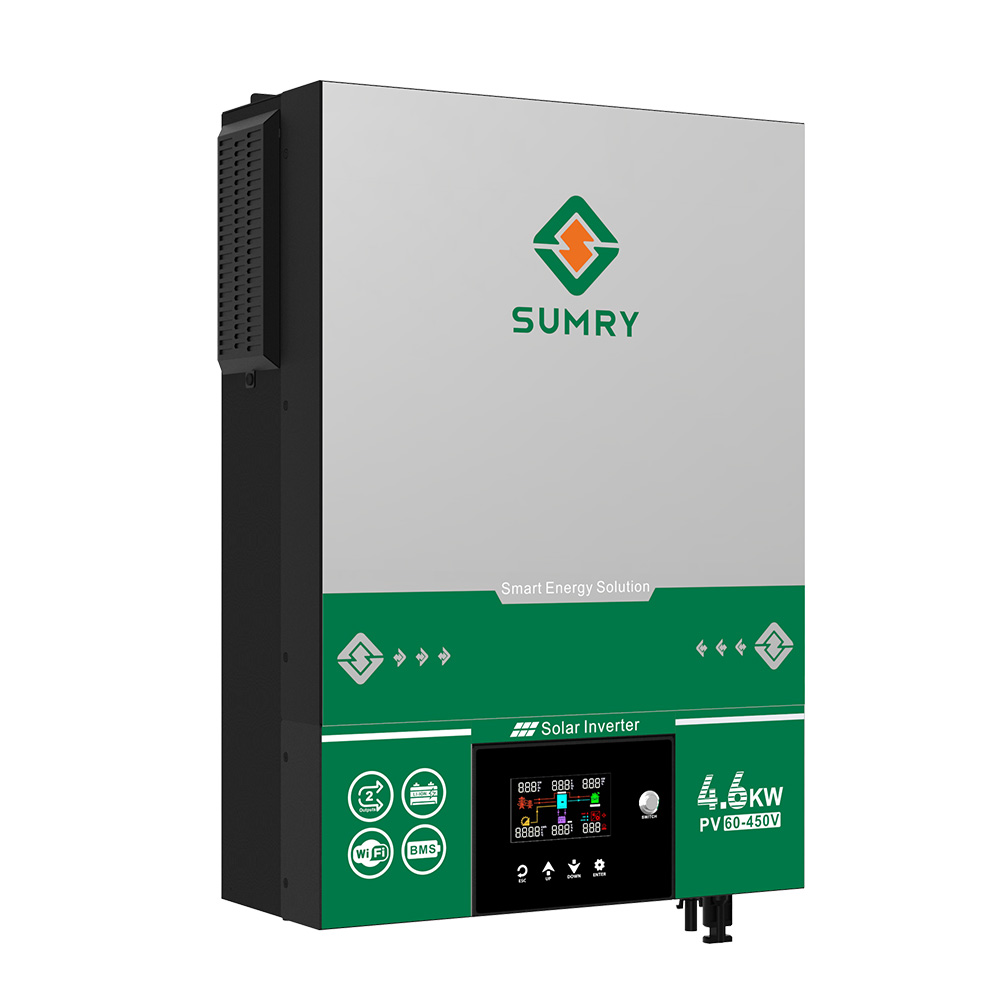

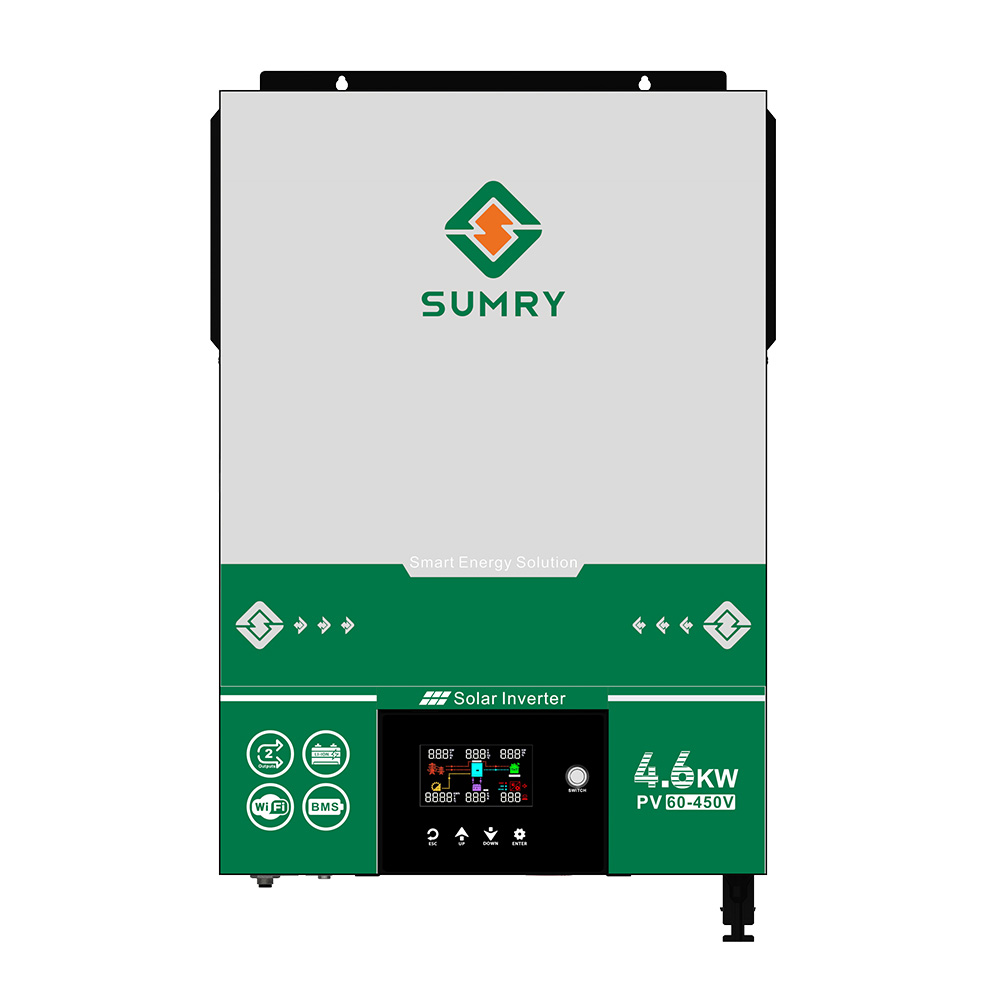

Pure sine wave solar inverter(on/off Grid).
Output power factor 1.0 .
Standard WIFI Module, compatible with Android and IoS .
Inverter can run without battery.
One-key restoration to factory Settings.
Built-in Lithium battery automatic activation.

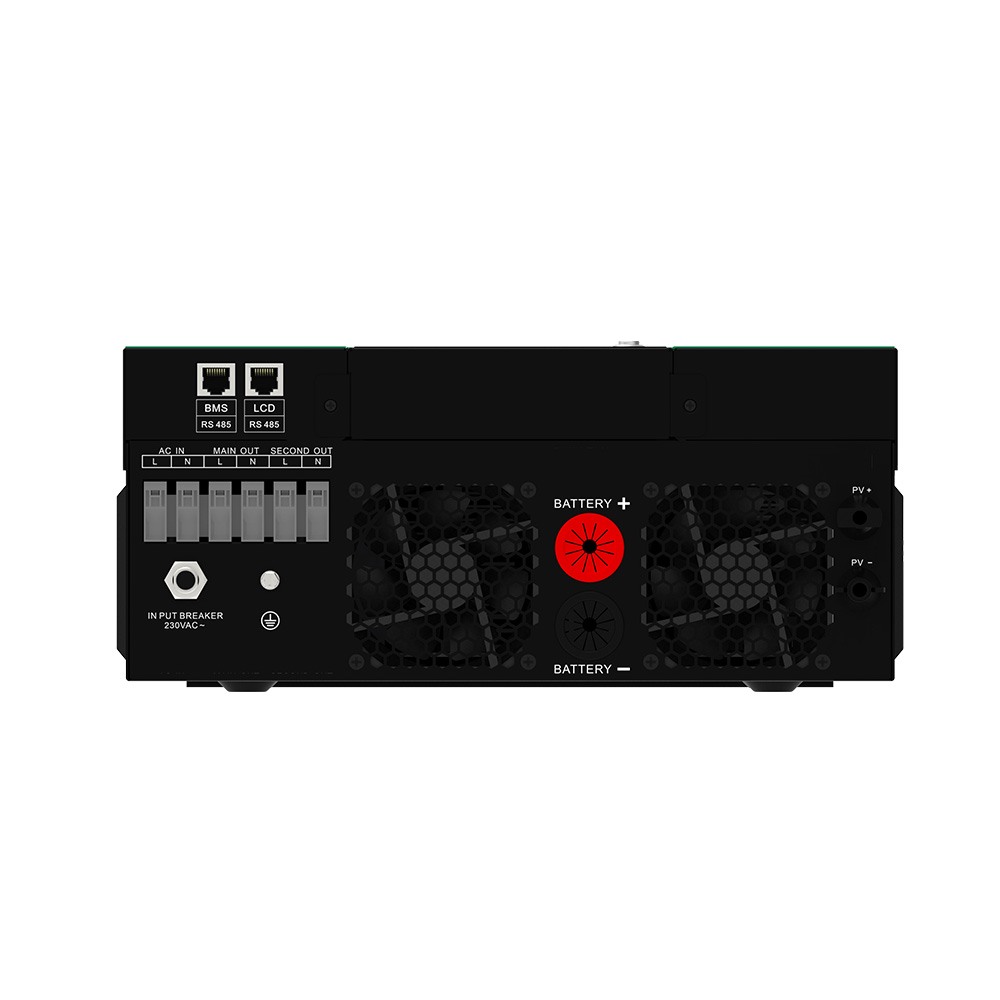

Dual communication ports for Battery communication and Wifi communication.
Built-in MPPT Solar charge.
High PV input voltage range(60~500VDC).
Built-in anti-dust kit for harsh environment.
Smart battery charge design to optimize battery life.
Dual output.
Offline upgrade through COMM port.
Maximum PV input current: 27A.
Inverter-lithium battery communication status displayed directly on the LCD interface.
In battery-free mode, PV systems deliver a better user experience when powering loads.
Add lithium battery information display to the APP.
The screen is movable and supports an expansion of up to 100 meters.
Under the battery's rated voltage and an ambient temperature of 40°C, with full-power output
MODEL | SPE-M PLUS-4.6KW | SPE-M PLUS-6.6KW | |
PHASE | Single phase | ||
Maximum PV Input Power | 6200W | 8000W | |
Rate Output Power | 4600W/4600VA | 6600W/6600VA | |
Grid-Tie OPERATION | |||
PV INPUT(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/ lnitial Feeding Voltage | 60VDC/90VDC | ||
MPPT Voltage Range | 60~450VDC | ||
Maximum lnput Current | 27A | ||
GRIG OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195~253VAC | ||
Nominal Output Current | 20A | 28.69A | |
Power Factor | >0.99 | ||
EFFICIENCY | |||
Maximum Conversion Efficiency(DC-AC) | 98% | ||
OFF-GRID,HYBRID OPERATION | |||
PV INPUT(DC) | |||
Maximum DC Voltage | 500VDC | ||
Start-up Voltage/lnitial Feeding Voltage | 90VDC/120VDC | ||
MPP Voltage Range | 60VDC-450VDC | ||
Number Of MPPT/Maximum Input Current | 27A | 27A | |
GRID OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195~253VAC | ||
Nominal Output Current | 20A | 28.69A | |
AC INPUT | |||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
AC Input Voltage Range | 90-280VAC or 170-280VAC | ||
Maximum AC Input Current | 30A | 40A | |
BATTERY MODE OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Efficiency | 94% | ||
BATTERY&CHARGER | |||
Nominal Voltage | 24VDC | 48VDC | |
Maximum Solar Charging Current | 120A | 120A | |
Maximum AC Charging Current | 100A | 100A | |
Maximum Charging Current | 120A | 120A | |
GENERAL | |||
PHYSICAL | |||
Dimension,D*W*H(mm) | 461*320*139 | ||
Package Dimension,D*W*H(mm) | 610*410*235 | ||
INTERFACE | |||
Communication Port | RS232/RS485/WIFI/BMS | ||
ENVIRONMENT | |||
Operating Temperature | -10℃~50℃ | ||
