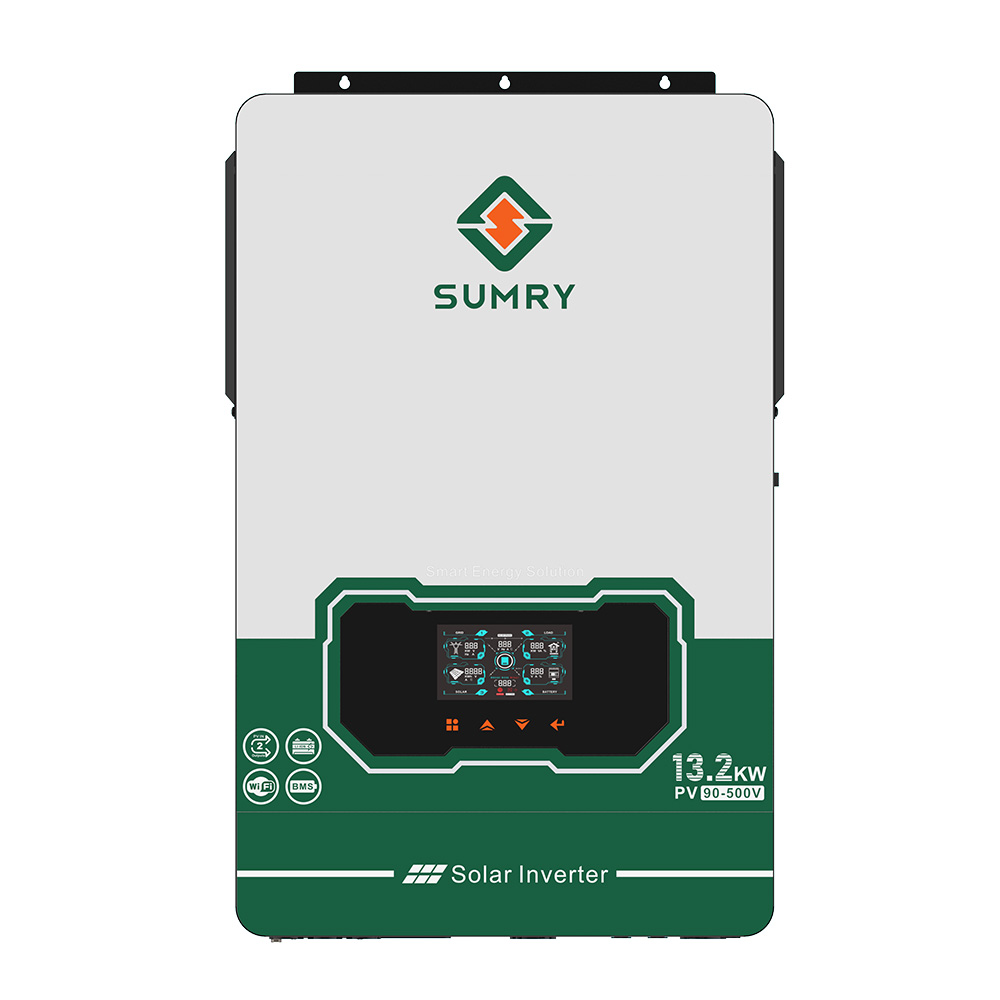

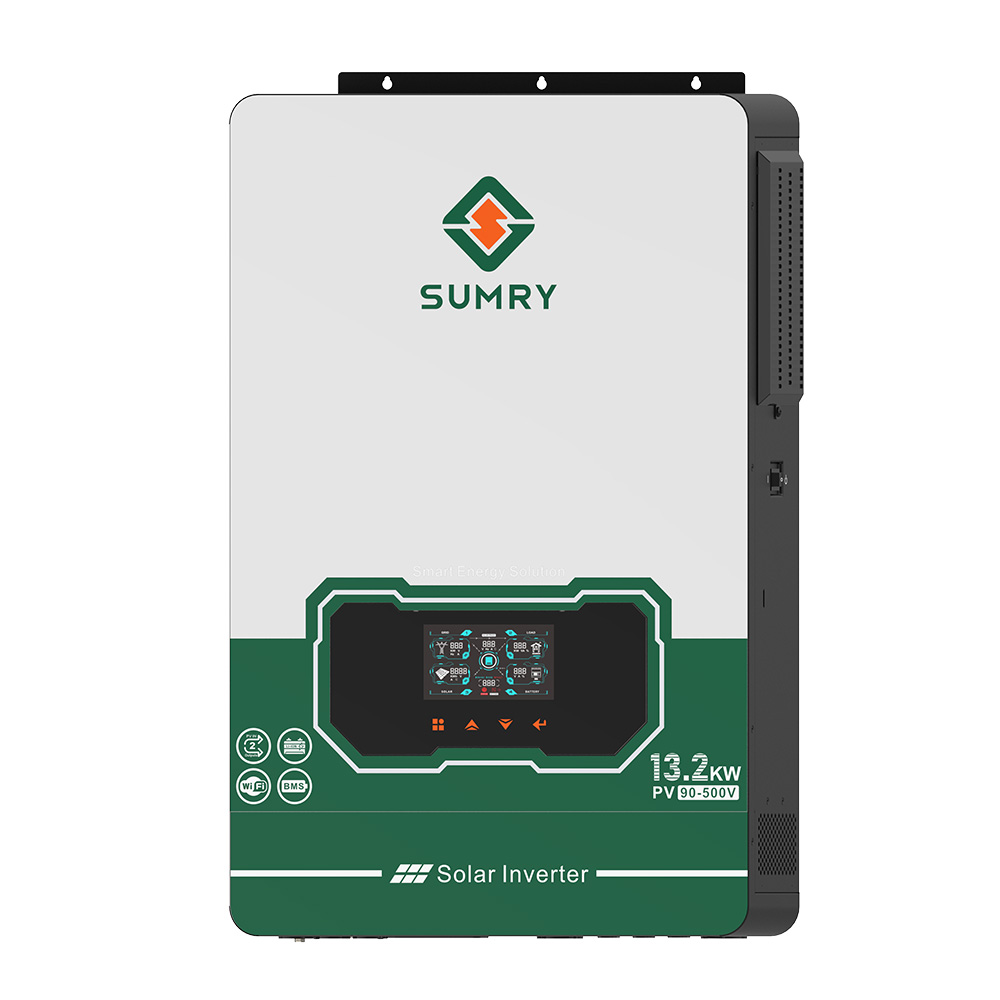

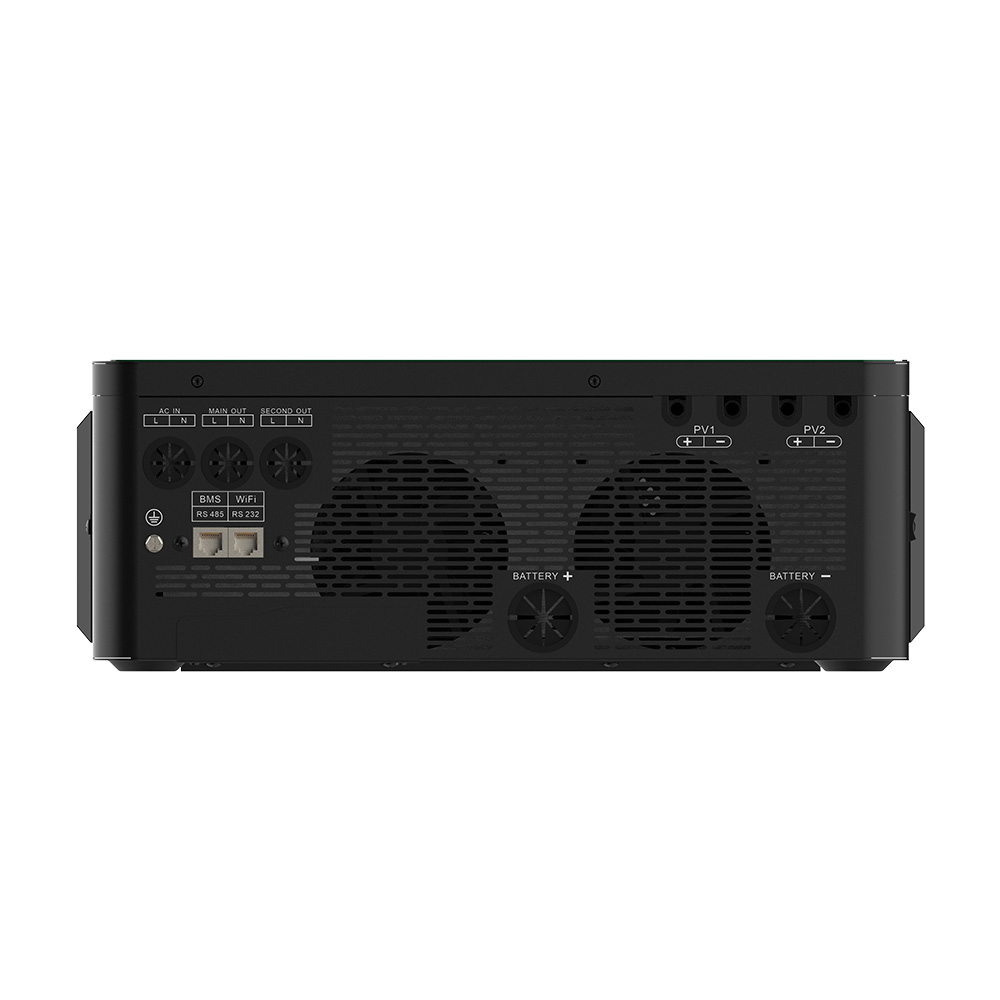

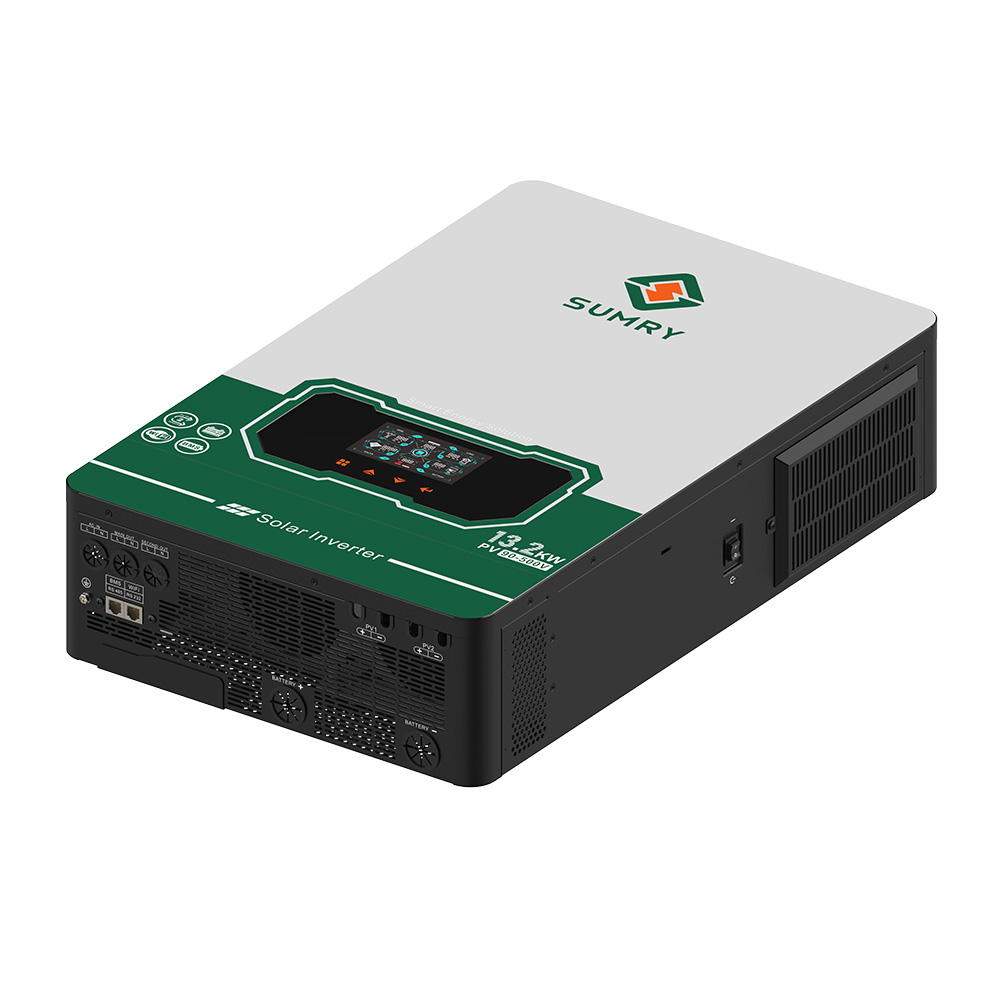

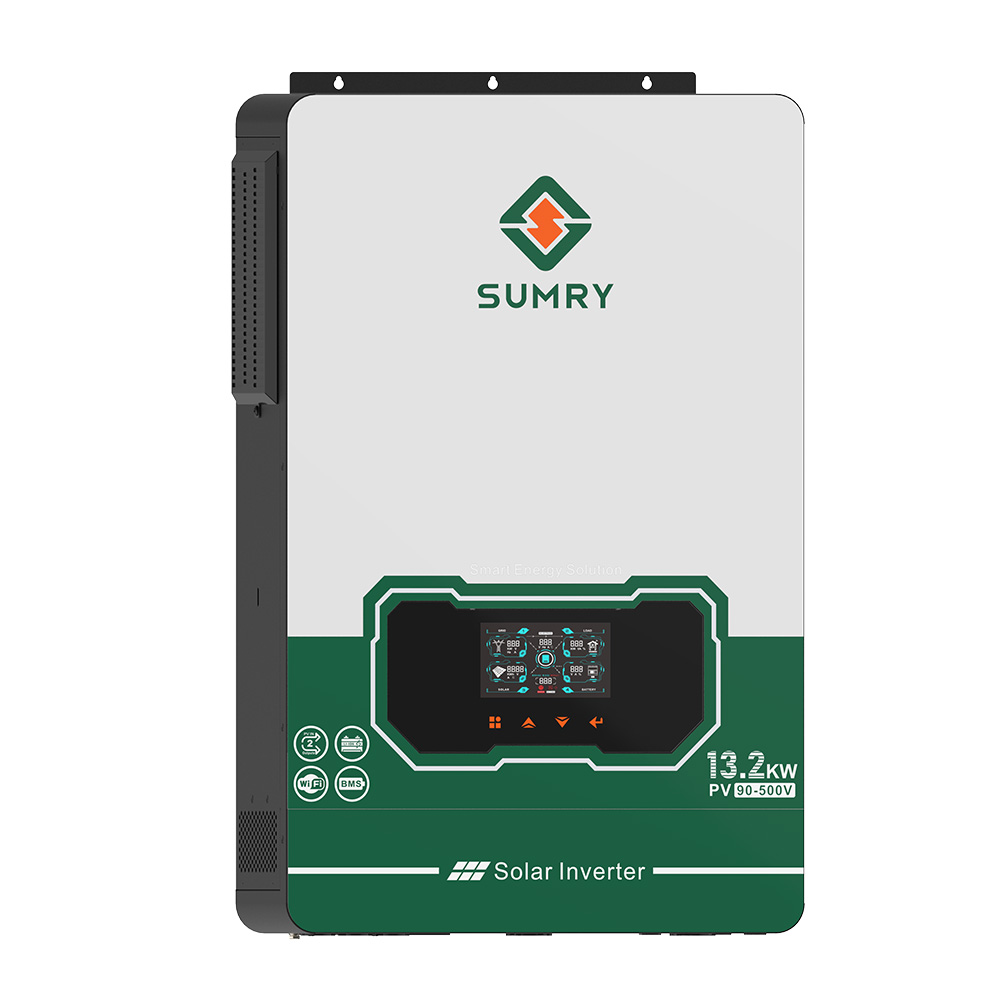

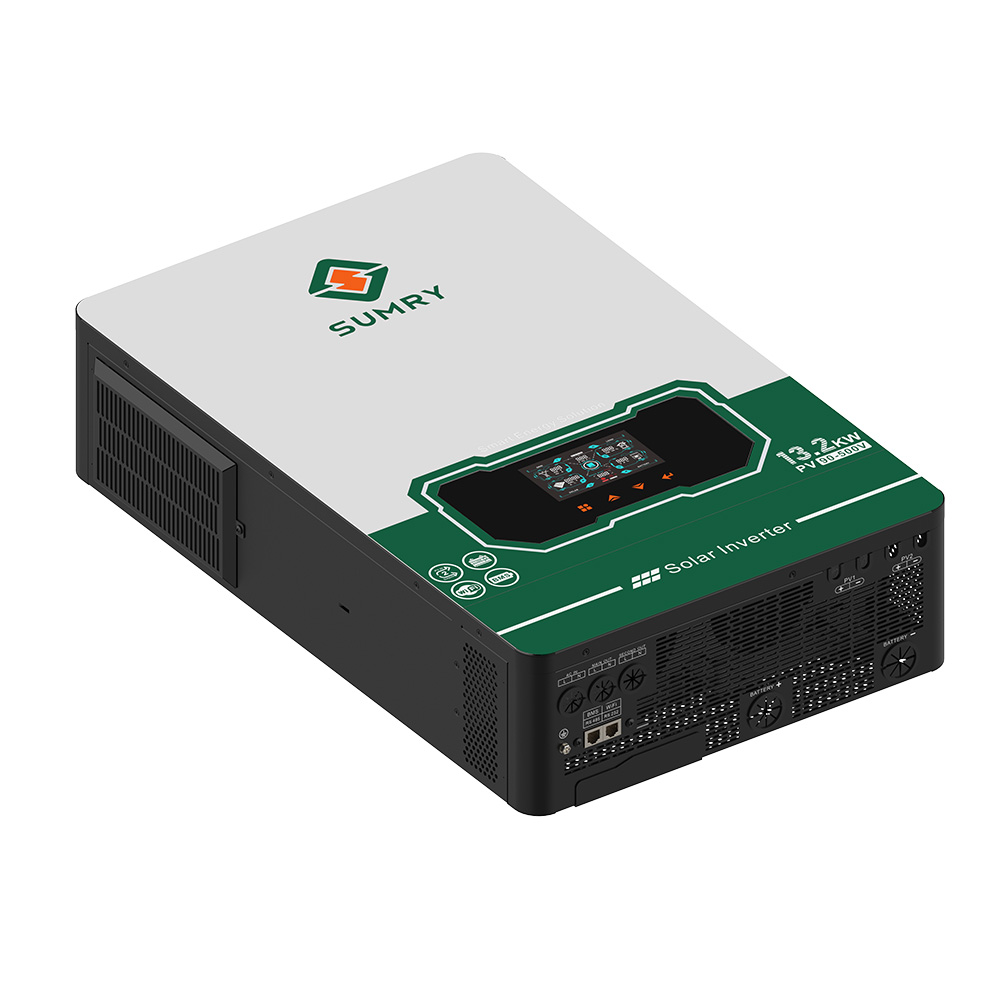

SPE-13.2KW
FEATURES
Pure sine wave solar inverter(on/off Grid)
Inverter can run without battery
Built-in Lithium battery automatic activation
Dual communication ports for Battery communication and WiFi communication
Smart battery charge design to optimize battery life
Dual PV input
WIFI&GPRS available for IOS and Android
One-key restoration to factory Settings
Built-in 160A MPPT solar charger(for13.2kw)
Built-in anti-dust kit for harsh environment
Dual output
On off Grid work Mode
MODEL | SPE–13.2KW |
PHASE | Single phase |
Maximum PV Input Power | 8000W+8000W |
Rate Output Power | 13200W/13200VA |
Grid–Tie OPERATION | |
PV INPUT(DC) | |
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC |
Start–up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
MPPT Voltage Range | 90~450VDC |
Maximum Input Current | 2/22A |
GRIG OUTPUT(AC) | |
Nominal Output Voltage | 220/230/240VAC |
Output Voltage Range | 195~253VAC |
Nominal Output Current | 57.3A |
Power Factor | >0.99 |
EFFICIENCY | |
Maximum Conversion Efficiency(DC–AC) | 98% |
OFF–GRID,HYBRID OPERATION | |
PV INPUT(DC) | |
Maximum DC Voltage | 500VDC |
Start–up Voltage/Initial Feeding Voltage | 90VDC/120VDC |
MPP Voltage Range | 90VDC–450VDC |
Number Of MPPT/Maximum Input Current | 2/22A |
GRID OUTPUT(AC) | |
Nominal Output Voltage | 220/230/240VAC |
Output Voltage Range | 195~253VAC |
Nominal Output Current | 57.3A |
AC INPUT | |
AC Start–up Voltage/Auto Restart Voltage | 120–140VAC/180VAC |
AC Input Voltage Range | 90–280VAC or 170–280VAC |
Maximum AC Input Current | 80A |
BATTERY MODE OUTPUT(AC) | |
Nominal Output Voltage | 220/230/240VAC |
Efficiency | 94% |
BATTERY &CHARGER | |
Nominal Voltage | 48VDC |
Maximum Solar Charging Current | 160A |
Maximum AC Charging Current | 140A |
Maximum Charging Current | 160A |
GENERAL | |
PHYSICAL | |
Dimension,D×W×H(mm) | 580×370×136 |
Package Dimension,D×W×H(mm) | 650×460×205 |
INTERFACE | |
Communication Port | RS232/RS485/WIFI/BMS |
ENVIRONMENT | |
Operating Temperature | -10 ℃ ~ 50℃ |
