Features

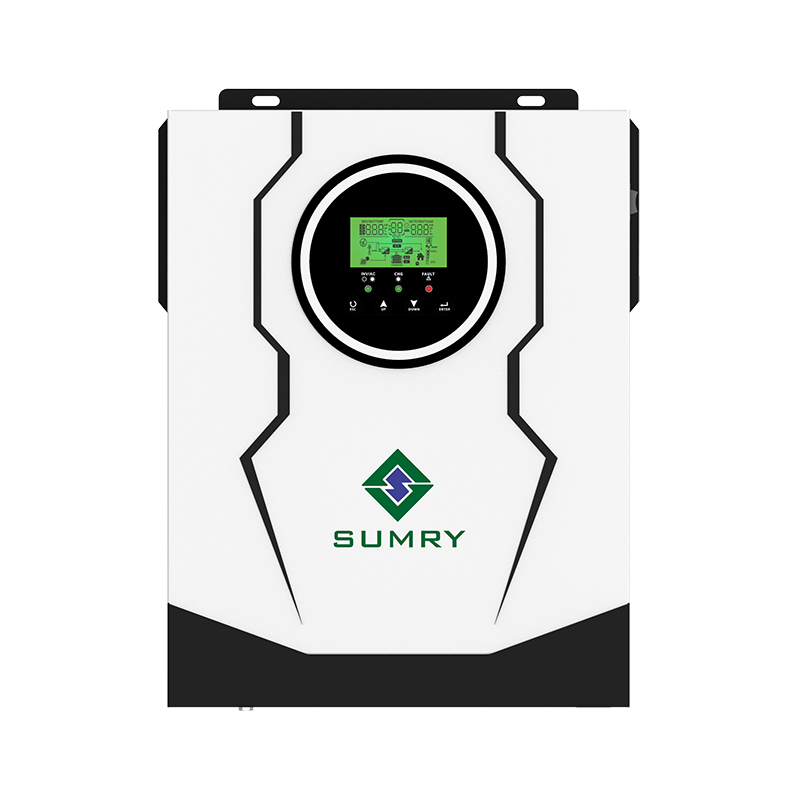

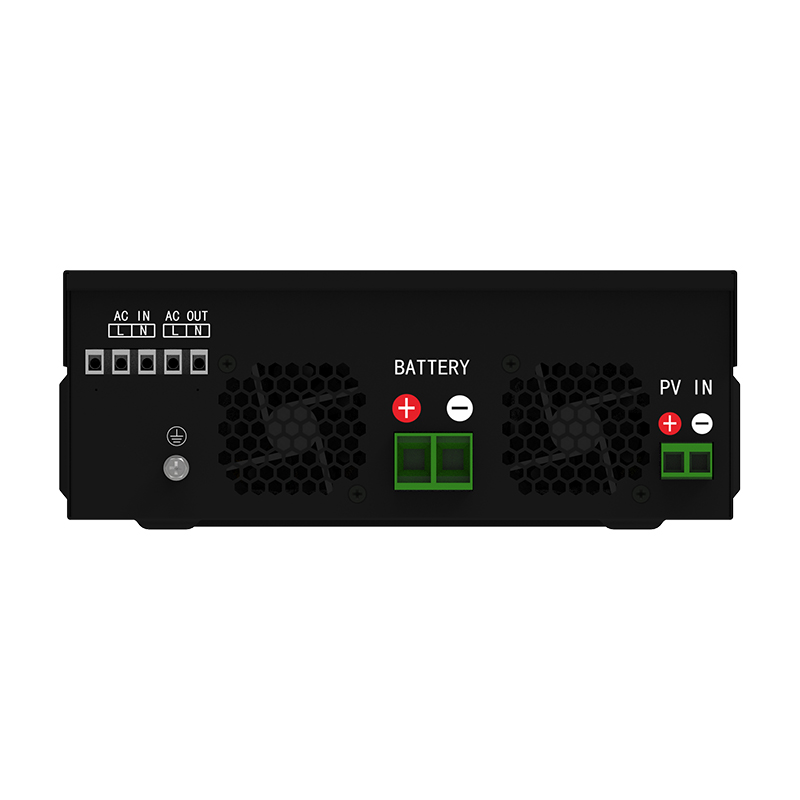

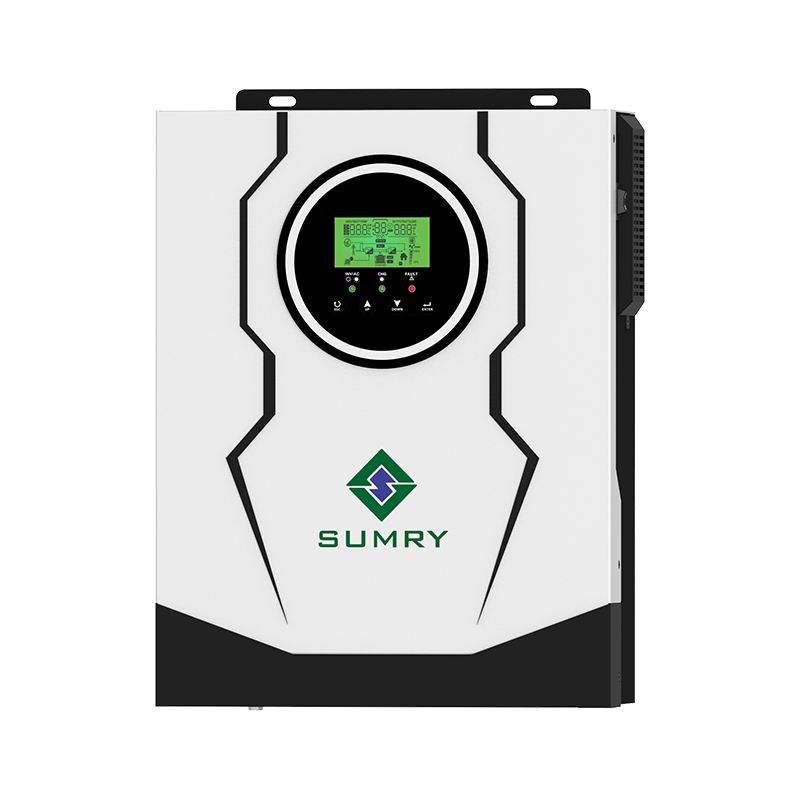

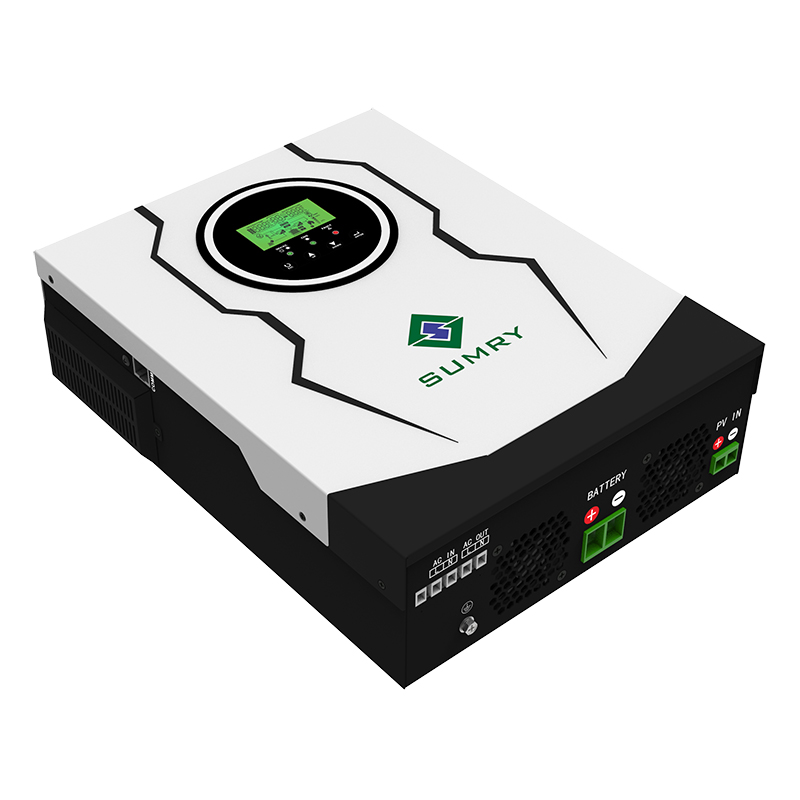

Pure sine wave solar inverter
WIFI& GPRS available for IOS and android
Buit-in 80A MPPT solar charger
Buit-in anti-dusk kit for harsh environment (optional)
Compatible with lithium-ion battery
High PV input voltage range(30-450VDC)
Smart battery charge design to optimize battery life
Solar energy is provided directly to the load first
Can meet the rich custom needs of customers
Product Data Sheet
MODEL | SM-2000-12 | SM-3200-24 |
Rated Power | 2000VA/1600W | 3200VA/3000W |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC (for personal computers) | |
Frequency Range | 50Hz/60Hz (Autosensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230VAC±5% | |
Surge power | 4000WVA | 6400VA |
Efficiency (Peak) PV to INV | 98% | |
Efficiency (Peak) BAT to INV | 94% | |
Transfer Time | 10ms (for personal computers) | |
Wave form | Pure Sine Wave | |
BATTERY & AC CHARGER | ||
Battery Voltage | 12VDC | 24VDC |
Floating Charge Voltage | 13.5VDC | 27VDC |
Over charge Protection | 16VDC | 33VDC |
Maximum charge current | 60A | |
SOLAR CHARGER | ||
MAX. PV Array Power | 2000W | 3000W |
MPPT Range@ Operating Voltage | 30-430VDC | |
Maximum PV Array Open Circuit Voltage | 450VDC | |
Maximum Charging Current | 80A | |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension. D*W*H(mm) | 348*270*95 | |
Net Weight (kgs) | 4kg | 5kg |
Communication Interface | RS232(Standard) | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
Operating Temperature | -10℃ to 55℃ | |
Storage Temperature | -15℃ to 60℃ | |
