FEATURES
Work at 2 different voltages : 12VDC or 24VDC. lt can meet different loads needs of users.
Cold start function.
Dual use on one inverter--World's first creation in 2025.
Pure sine wave output inverter.
According to the requirements of load,the input voltage range of utility grid can be selected.
According to the battery requirements, the charging current can be set through LCD.
Solar energy and utility grid can power loads at the same time.
AC input is compatible with mains and generator.
Automatic restart function when mains power is restored.
Overload/Over temperature/ short circuit protection.
The intelligent charging design of battery makes the battery more fully utilized.
RGB lights (optional).

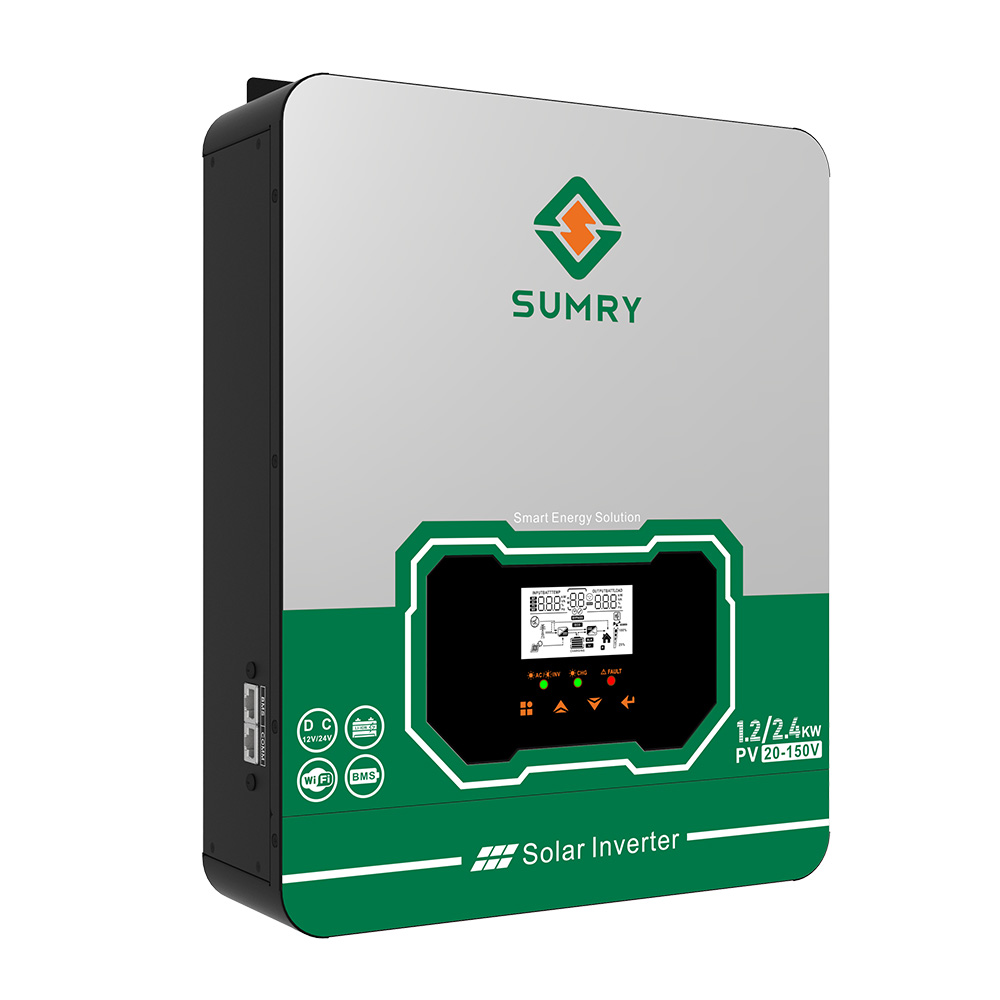

MODEL | SEP-2400L | |
BATTERY | 12VDC | 24VDC |
PHASE | Single phase | |
Maximum PV Input Power | 600W | 1200W |
Rate Output Power | 1200VA/1200W | 2400VA/2400W |
OFF-GRID | ||
PV INPUT(DC) | ||
Maximum DC Voltage | 150VDC | |
Start-up Voltage | 20VDC | 30VDC |
MPP Voltage Range | 20VDC-150VDC | 30VDC-150VDC |
GRID OUTPUT(AC) | ||
Nominal Output Voltage | 230VAC | |
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage | 90VAC/80VAC | |
AC Input Voltage Range | 90VAC～280VAC | |
Maximum AC Input Current | 30A | |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 230VAC | |
Efficiency | 94% | |
BATTERY &CHARGER | ||
DC Voltage Range/Nominal Voltage | 10VDC～16VDC/12VDC | 20VDC～32VDC/24VDC |
Maximum Solar Charging Current | 40A | |
Maximum AC Charging Current | 60A | |
Maximum Charging Current | 100A | |
GENERAL | ||
PHYSICAL | ||
Dimension,D*W*H(mm) | 360*275*84.7 | |
Net Weight(kgs) | 5.0 | |
INTERFACE | ||
Communication Port | RS232/RS485/WIFI/BMS | |
ENVIRONMENT | ||
Operating Temperature | -20℃~ 50℃ | |
STANDARD | ||
Safety | CE:IEC-62109 | |
