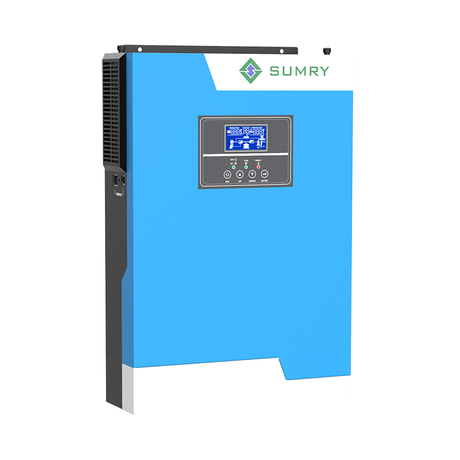

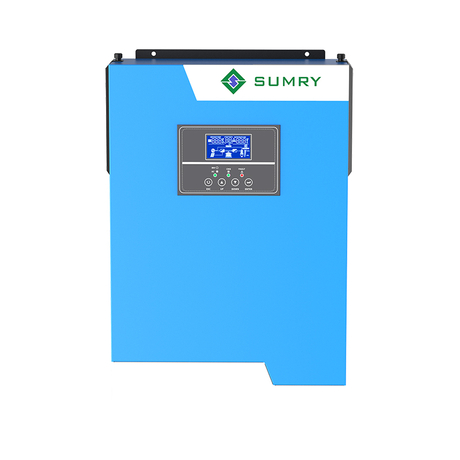

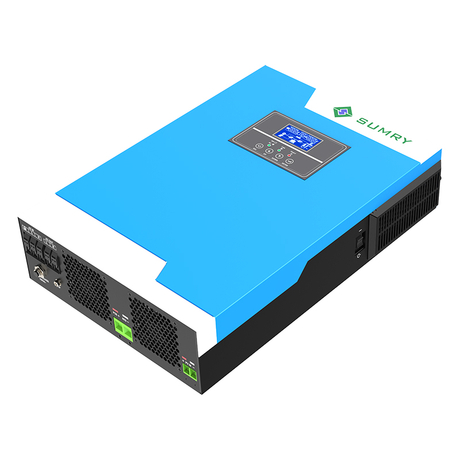

Single 3200W Home Off grid inverter

Product Description

Features


Pure sine wave solar inverter

Output power factor 1.0

WIFI & GPRS available for IOS and android

Inverter running without battery

Buit-in 100A MPPT solar charger

High PV input voltage range(120-500VDC)

Buit-in anti-dusk kit for harsh environment

Smart battery charge design to optimize battery life


Product Data Sheet


MODEL

MPS-V 3500W-PLUS

MPS-V 5500W-PLUS

Rated Power

3500VA/3500W

5500VA/5500W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280VAC (for personal computers)
90-280VAC (for home appliances)

Frequency Range

50Hz/60Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC±5%

Surge power

7000VA

11000VA

Efficiency (Peak) PV to INV

97%

Efficiency (Peak) BAT to INV

94%

Transfer Time

10ms (for personal computers)
20ms (for home appliances)

Wave form

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

24VDC

48VDC

Floating Charge Voltage

27VDC

54VDC

Overcharge Protection

33VDC

63VDC

Maximum charge current

80A

80A

SOLAR CHARGER

MAX.PV Array Power

5000W

6000W

MPPT Range@ Operating Voltage

120-450VDC

Maximum PV Array Open Circuit Voltage

500VDC

Maximum Charging Current

100A

Maximum Efficiency

98%

PHYSICAL

Dimension. D*W*H(mm)

440*300*100

Net Weight (kg)

11kg

Communication Interface

USB/RS232(Standard)
GPRS/WIFI(Optional)

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

0℃ to 55℃

Storage Temperature

-15℃ to 60℃
